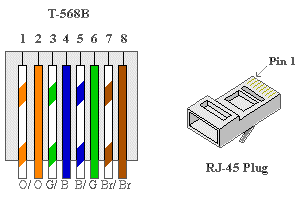

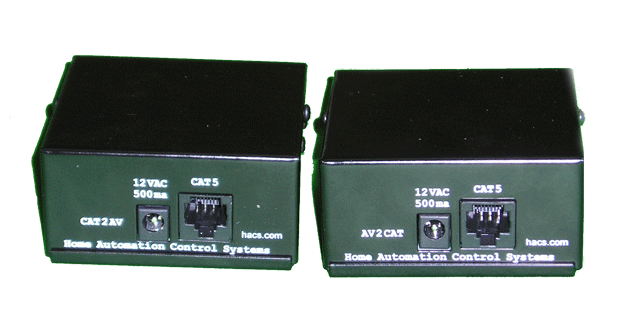

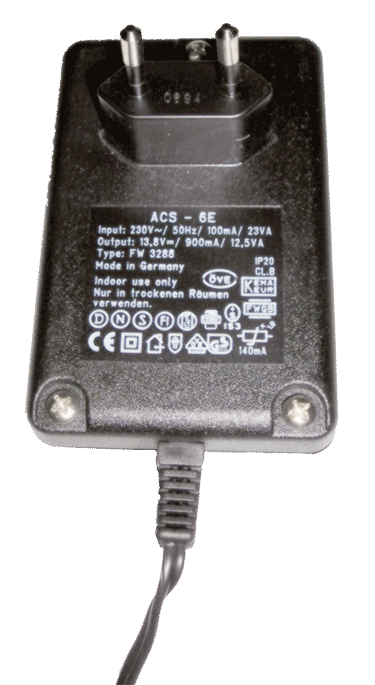

CAT5 "PATCH" cable required! Same color sequence (see above) on both ends.
| |

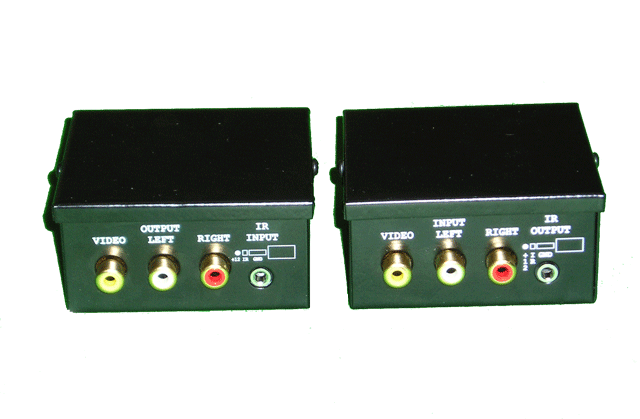

Video
|
Input impedance |
75 ohm |
Output impedance |
75 ohm |
DC coupled 0-45mhz unity gain |
total harmonic distortion @ 5mhz |
-75db |
0 to 2 +/- vdc input/output
Buffered output
|
|
|
| |
Audio
|
Input impedance |
10k ohm |
Output impedance |
600 ohm |
DC coupled 0-30khz unity gain |
|
crosstalk @ 10khz |
-90db |
Buffered output |
|
|
|
| |
IR
|
3.5mm stereo jack in/out |
|
tip |
12vdc (output) |
ring |
IR |
sleeve |
GND |
|
|
